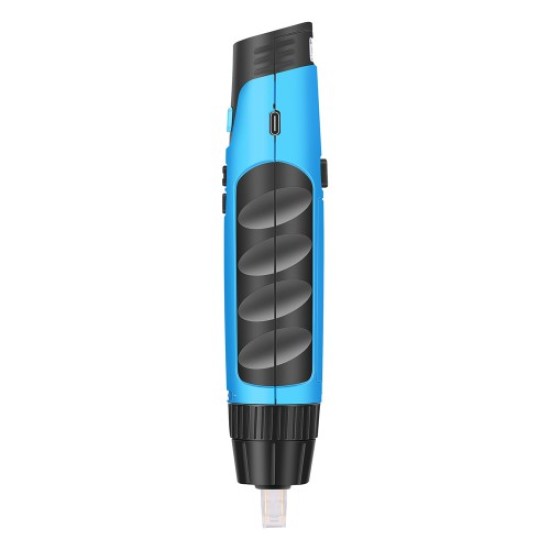

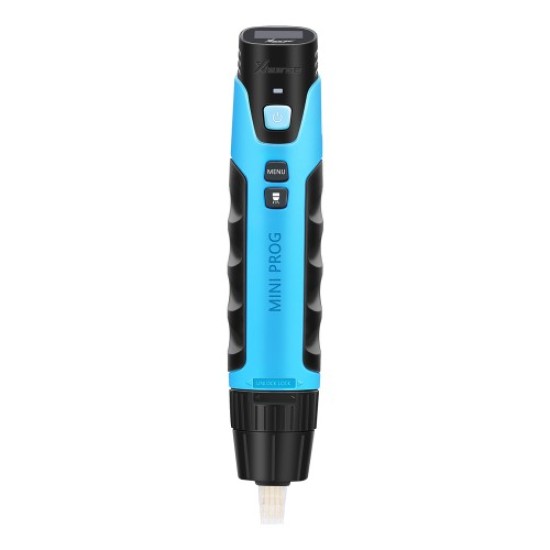

Xhorse Mini Prog Multi-functional Chip Programmer

Product Description

Xhorse Mini Prog Multi-functional Chip Programmer

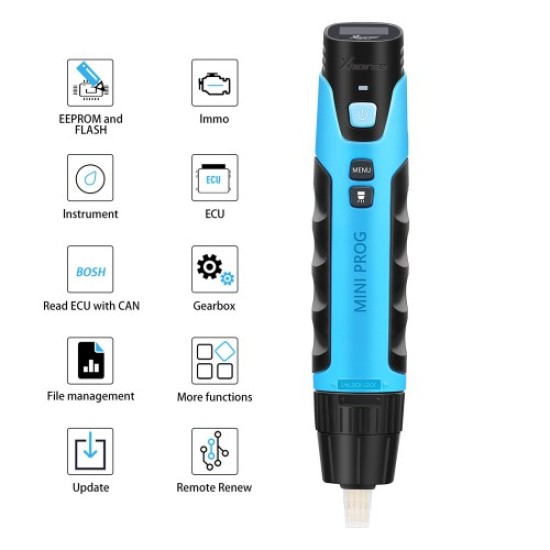

Xhorse MINI PROG Features:

Solder-free Programming

EEPROM Reading & Writing

Dashboard Data Reading & Writing

Data Editing

Press Header

PIN Status Detection

APP Control

Cloud Backup

Leads a New Trend of Solder-free Programming

Designed to Offer Simple and Secure Programming Experience

Traditional way of programming with solder

• Need to solder wire, complicate and time-consuming
• Need to remove chip and cut the wire which may lead to car breakdown or data loss if you are not good at soldering
• Data loss may be easily caused by solder skips

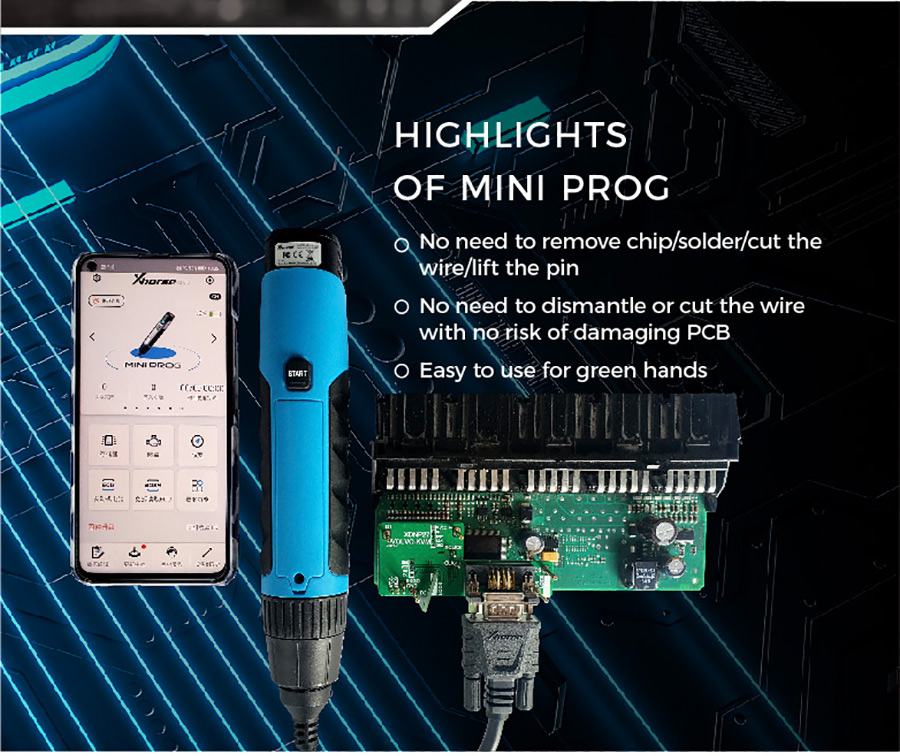

Highlights of MINI PROG:

• No need to remove chip/solder/cut the wire/lift the pin
• No need to dismantle or cut the wire with no risk of damaging PCB
• Easy to use for green hands

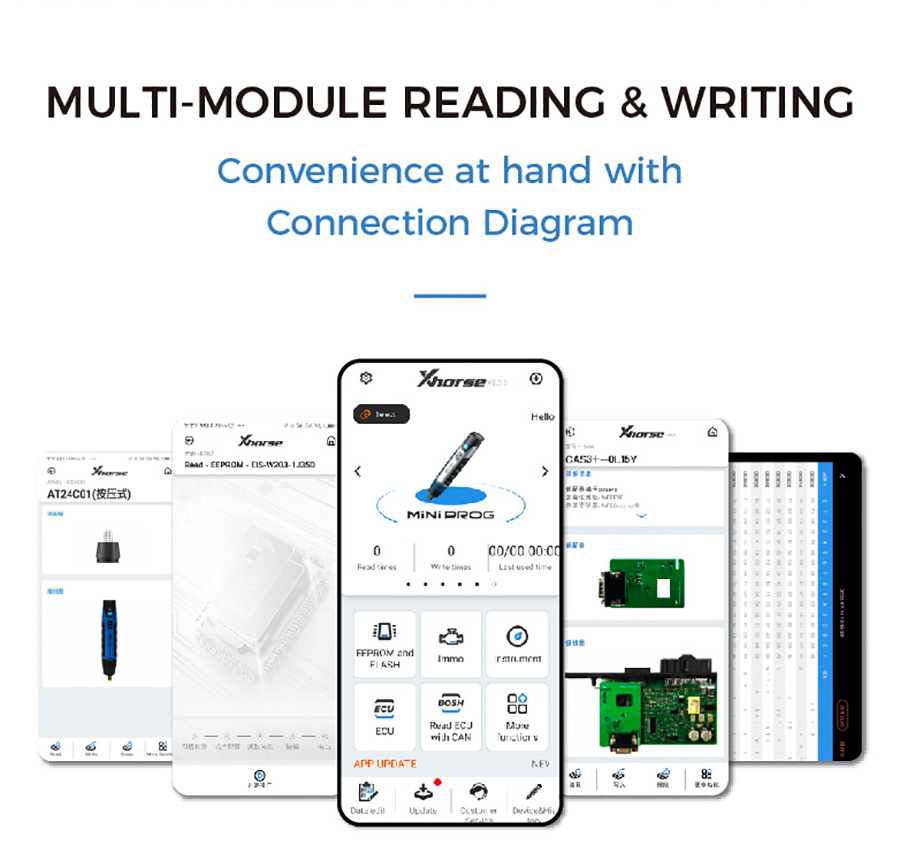

Multi-module Reading & Writing

Convenience at hand with Connection Diagram

IMMO data reading & writing

BMW: BDC/CAS3/CAS3+/CAS4/CAS4+/FEM

BENZ: EIS/EIZ

PORSCHE: BCM

LANDROVER: RFA

VOLVO: CEM/KVM

EEPROM reading & writing

Support reading and writing 24C××, 93C××,95×××, 25××× etc. EEPROM data

Covering 95% of common EEPROM in market

ECU data reading & writing

Support reading & writing DFLASH and PFLASH of BMW, AUDI, VW

Dashboard data reading & writing

Support Honda, Kia, Hyundai etc.

The support list above is displayed only partially and you can refer to the latest version of MINI PROG for the complete list.

Pin Header Reading Chip Directly, Pioneer in Industry

Ultra-simple operation that adapts to you.

There is no need to remove the chip when reading. All you need is to press the pin header at the appropriate chip and then you can read and write data on Xhorse APP.

Pin Header 1 supports reading DIP8 chip

Pin Header 2 supports reading SOP8 wide-type package chip

Pin Header 3 supports reading SOP8 standard package chip

Smart Detection

Detect Pin Connection Status with Great Accuracy

Your work, more secure.

MINI PROG supports pin status detection and will give notice when poor contact arises, which makes it easy to operate and avoid data loss and damage.

Multiple Solder-free Adapters Available(Optional)

BMW Adapters

BMW CAS3/CAS3+, CAS4/CAS4+, FRM, DB15-DB25 adapter(for EWS4 adapter only), D80/35080, ECU interface board kit

PORSCHE IMMO Adapter

Porsche BCM

LANDROVER IMMO Adapter

LANDROVER KVM

VOLVO IMMO Adapters

VOLVO KVM, VOLVO CEM-1, VOLVO CEM-2

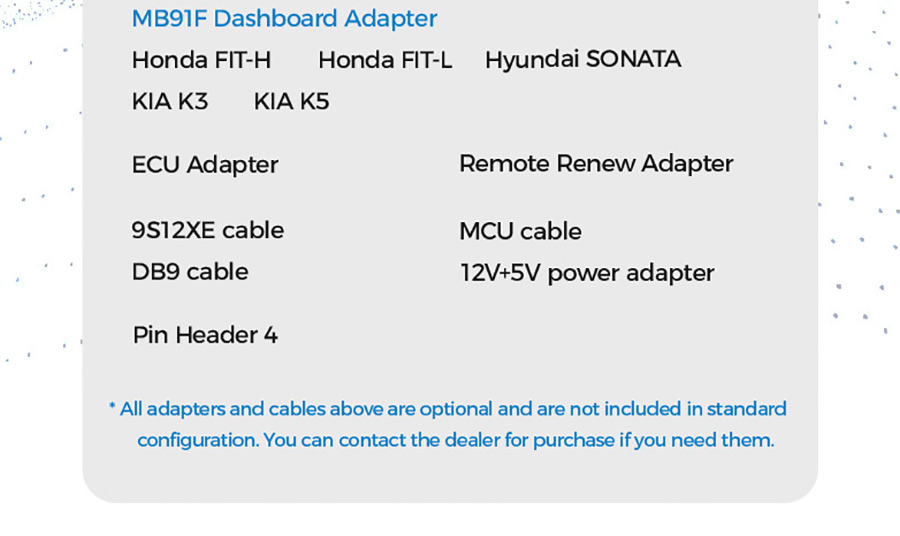

MB91F Dashboard Adapter

Honda FIT-H

Honda FIT-L

Hyundai SONATA

KIA K3

KIA K5

ECU Adapter

Remote Renew Adapter

9S12XE cable

MCU cable

DB9 cable

12V+5V power adapter

Pin Header 4

All adapters and cables above are optional and are not included in standard configuration. You can contact the dealer for purchase if you need them.

High-tech made simple

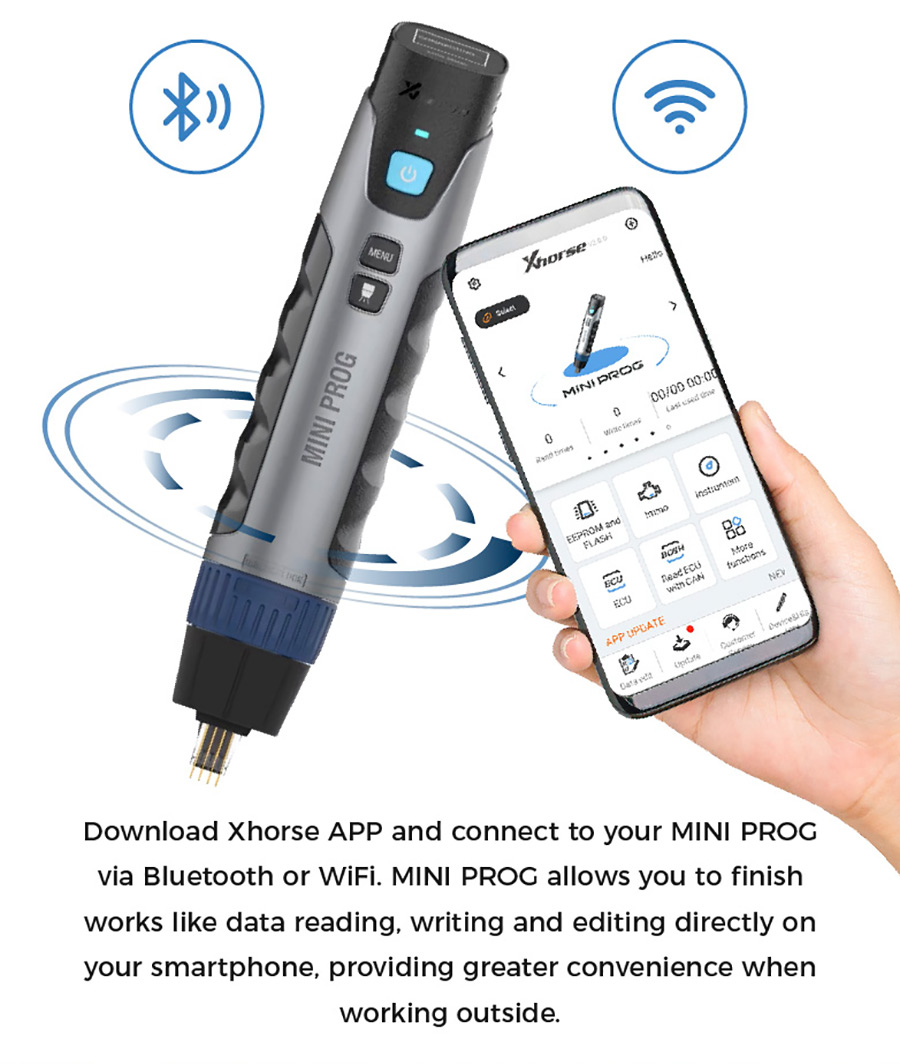

APP Control With No Need to Use Computer Anymore

Download Xhorse APP and connect to your MINI PROG via Bluetooth or WiFi. MINI PROG allows you to finish works like data reading, writing and editing directly on your smartphone, providing greater convenience when working outside.

Cloud Storage, Safer Than Ever

Data can be stored in Local File as well as Cloud to ensure the safety of data, avoiding data loss caused by misconduct.

Professional Online Customer Service Available

More Functions Coming Soon

MINI PROG delivers firmware and database updating and functions adding from time to time. Stay tuned!

Log in to Xhorse APP and you can find related videos and technical articles that will help you transform from a green hand to an old hand.

 Xhorse provides professional after-sale service and you can contact the technical support team on Xhorse APP to solve your problems.

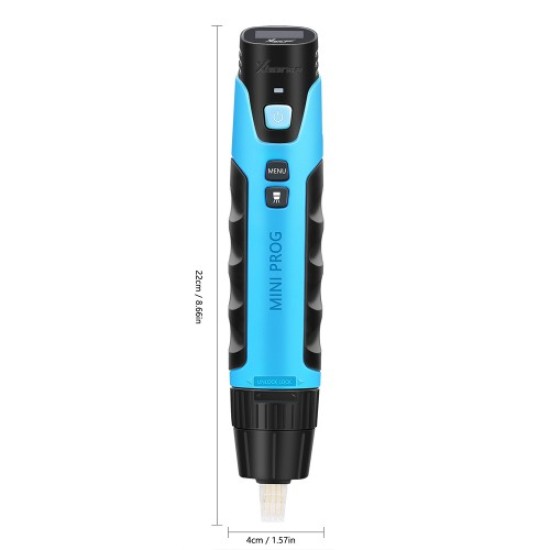

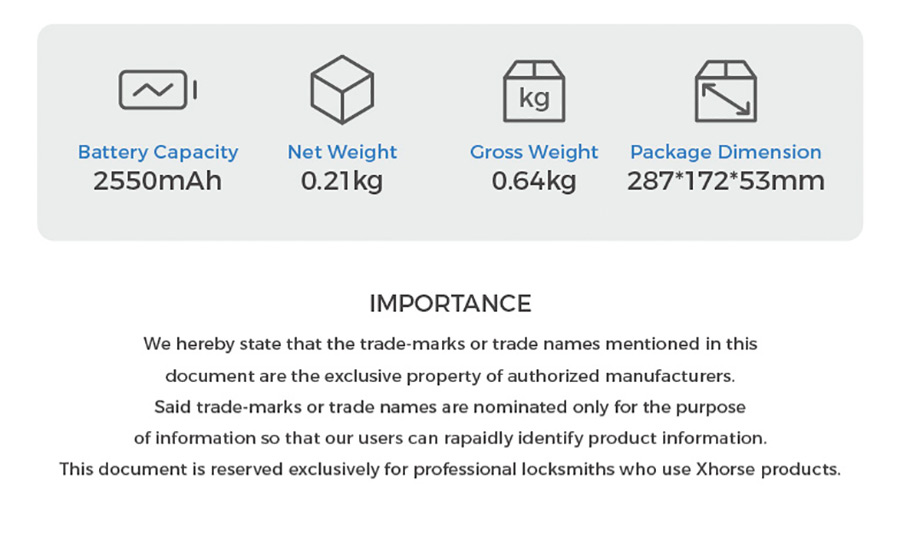

MINI PROG Parameters:

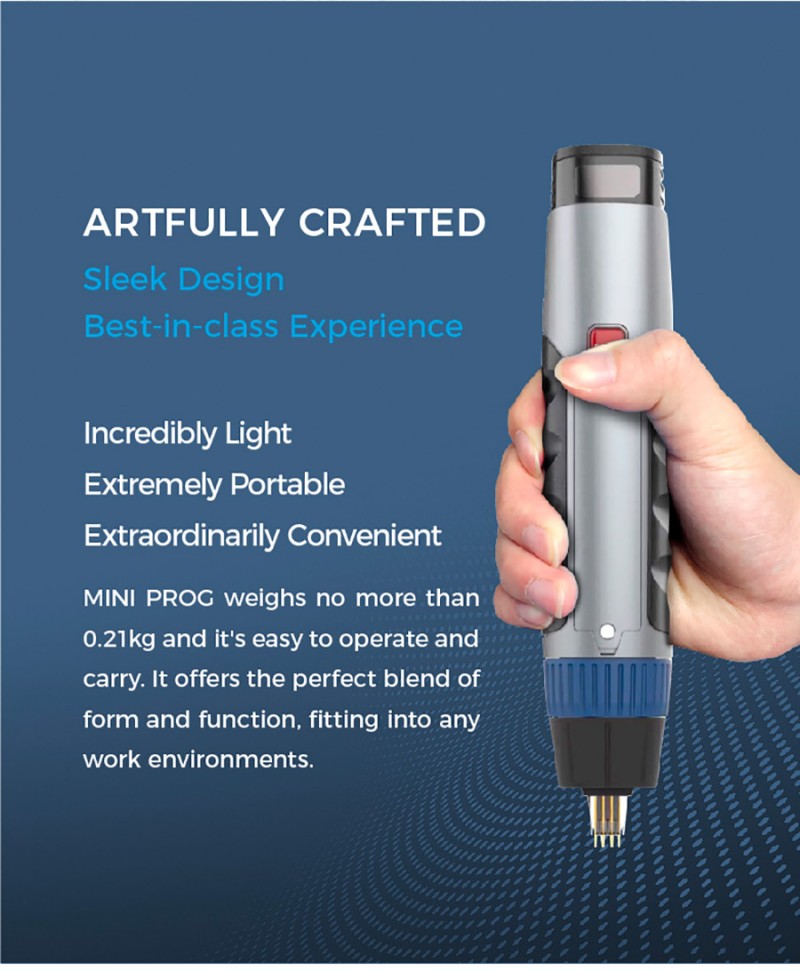

MINI PROG weighs no more than 0.21kg and it's easy to operate and carry. It offers the perfect blend of form and function, fitting into any work environments.

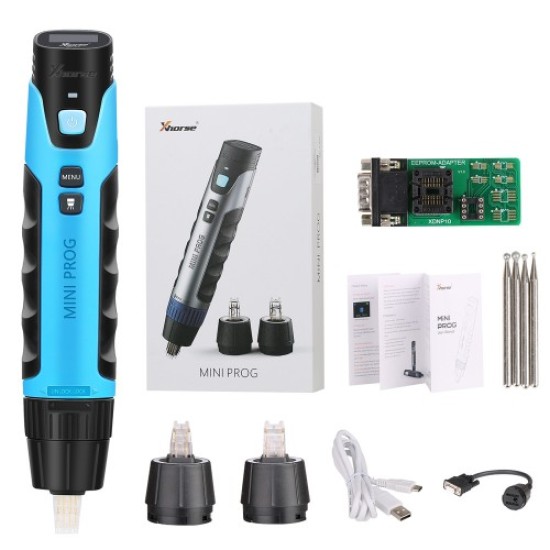

XHORSE MINI PROG Package includes:

1pc x DB15 Cable

1pc x EEPROM Adapter

3pc x Pin Headers

Pin Header 1 supports reading DIP8 chip

Pin Header 2 supports reading SOP8 wide-type package chip

Pin Header 3 supports reading SOP8 standard package chip
