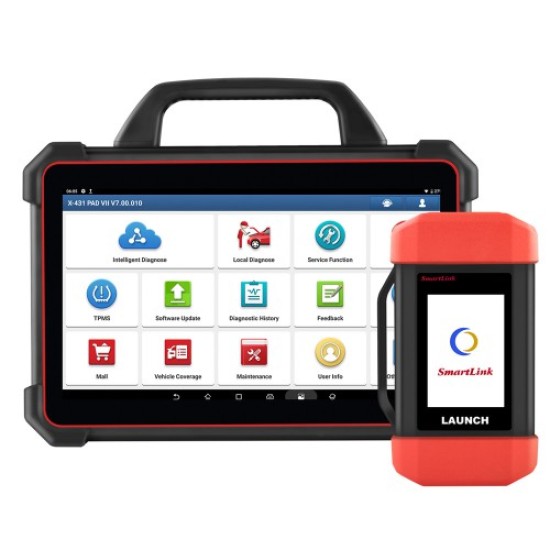

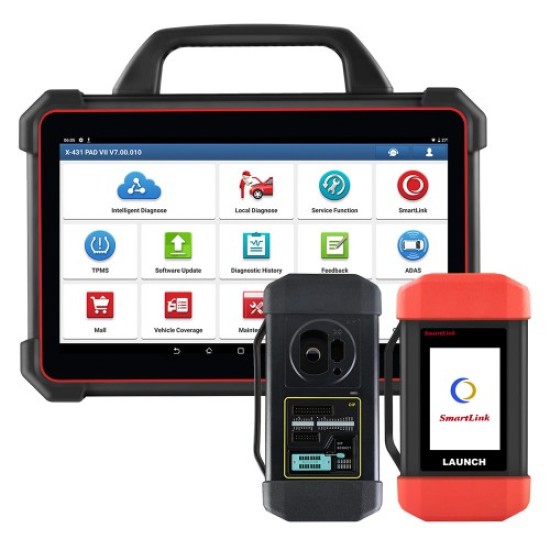

Launch X-431 PAD VII PAD 7 Elite Plus GIII X-Prog 3 Full System Diagnostic Tool Support Key Programming/ Online Coding and ADAS Calibration

Product Description

Launch X-431 PAD VII PAD 7 Elite Plus GIII X-Prog 3 Full System Diagnostic Tool Support Key Programming/ Online Coding Programming and ADAS Calibration

Highlights:

1. With 2 Years Free Update Online (Register after Oct 1st, 2022)

2. This is Global Version Without IP Limitation

3. Realtime Remote Diagnosis Function via WiFi

4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.

5. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese

6. Full System Vehicle Coverage for U.S., Asian and European markets over 110 brands, which is continually updated

7. Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS

8. With the help of GIII X-Prog3, it enables read/write keys, Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement.

9. Support Online Coding and Programming for Car Brands: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru.

Warm Notice:

1. Launch PAD7 Elite can support Mercedes and BMW online coding and programming only in the United States and Canada.

2. Online coding and programming functdions can't perform at all in Spain and Portugal.

Other countries no limitation.

Description:

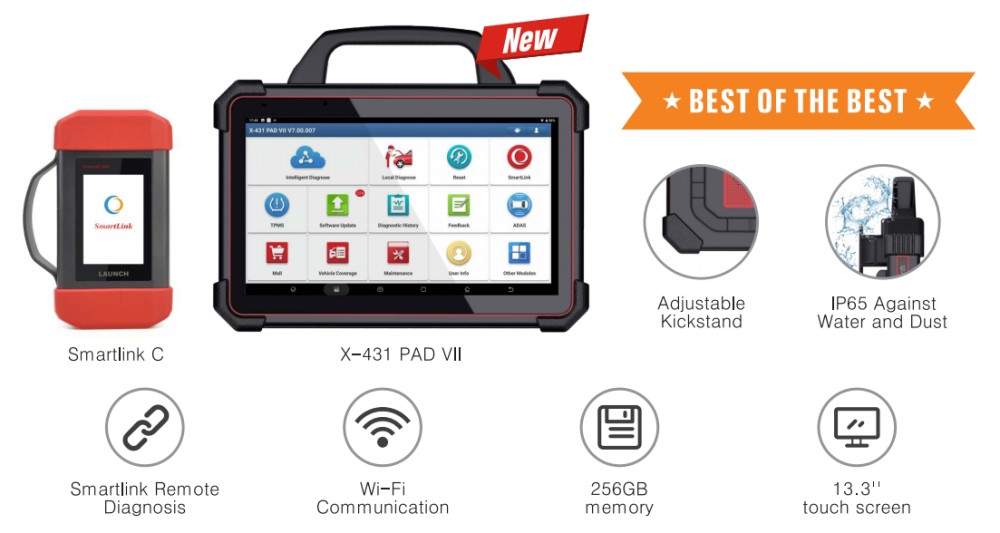

Launch Tech X-431 PAD VII Elite Diagnostic Tool features a 13.3"  touchscreen, 32 service functions, and Smartlink remote diagnosis. The outer shell is designed to withstand workshop hazards such as water and dust damage and is in compliance with IP65. The X-431 PAD VII Elite uses a high-capacity and high power battery to ensure a longer battery life with a shorter charging time. The tool offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software. The X-431 PAD VII Elite supports ADAS calibration and eight extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester.

X-431 PAD VII Elite is a high-end comprehensive diagnostic tool with charging base newly developed on the basis of Android 9.0. It supports dual 2.4GHz &5GHz Wi-Fi communication. In addition to supporting the functions of pad v products, it mainly features 13.3inch high-definition display, 8 + 256 storage space, especially with SmartLink C, which can support SmartLink remote diagnosis.

Superior Hardware Make Diagnosis Faster Than Ever

X-431 PAD VII Elite is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII Elite makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.

The X-431 PAD VII Elite uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII Elite improves the connection between scanner and VCI into "Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.

Launch X-431 PAD VII Elite Features:

1. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis

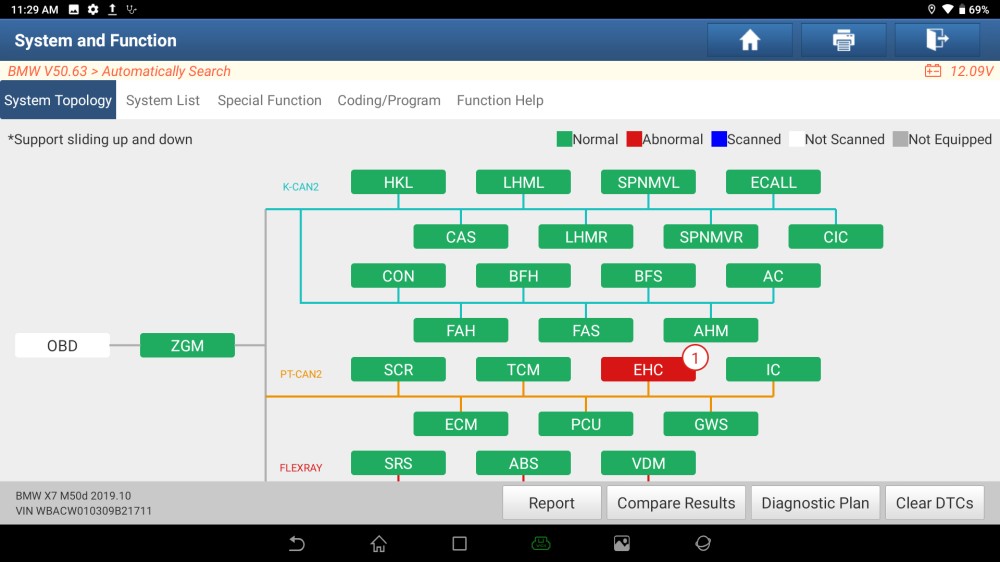

2. Topology mapping gives a visual checking on DTCs and all systems communication status

3. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210

4. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not

5. Intelligent diagnostic enable identify VIN automatically and access system quickly

6. Guided function for VW and AUDI

7. Optional ADAS calibration function increases more revenue

8. Advanced coding and programming function

9. An extended solutio to support TPMS service

10. 2.4GHz & 5GHz dual band communication ensures quick and stable connection

11. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C

12. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.

13. Build-in repair information and training video modules help to track and fix issue fast.

Accurate ADAS Calibration functions

Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting. (NOTE: Need to be purchased separately)

Functions:

1. Check the DTCs and all systems communication status visually by topology module mapping function.

2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.

3. Check the DTCs and all systems communication status visually by topology module mapping function.

4. Powerful diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.

5. Display I/M Readiness Status.

6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.

7. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.

Powerful Special Functions:

Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration, Communicates with ABS & Transmissions from Bendix, Wabco and Allison, Tech to Tech remote communication function

The powerful Smartlink C VCI powers the diagnostic to a new level. Users are available to perform remote diagnosis without being on-site and

the limitation of diagnostic functions, tools and vehicle types.

It is able to assist technician to identify the OBDII port pin automatically and display the real-time voltage for voltage condition

monitoring during live diagnostics.

32 Service Functions:

Service Lamp Reset

Electronic Throttle

Brake Reset

Immobilizer Reset

Battery Reset

Injector Coding

SAS Reset

TPMS Reset

ABS Bleeding

Gear Learning

DPF Regeneration

Gearbox Reset

Headlamp Reset

Sunroof Initialization

SUS Reset

EGR Adaption

A/F Reset

AdBlue Reset

Nox Sensor Reset

Stop/Start settings

Transport Mode

Coolant Bleed

Windows Calibrations

Seat Calibrations

Tyre Reset

Language Change

Vehicle Coverage:

Passenger Vehicles:

1. Australian:  AUST Holden, AUST Ford

2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar

4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep

5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.

6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS

7. Others: EOBD, Demo

Heavy Duty Vehicles (Need to Pay Heavy Duty License and Adpater Set):

Nissan (Diesel)

Mitsubishi (Diesel)

USA Ford Diesel, Kenworth

Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel

Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty

Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty

WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty

Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine

Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck

Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International

HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software

IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD

Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Smartlink C VCI

Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.

* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time

* Support the latest diagnosis protocol of CAN/DOIP / CAN FD

* Support 2.4G/5G dual band

* Support online upgrade

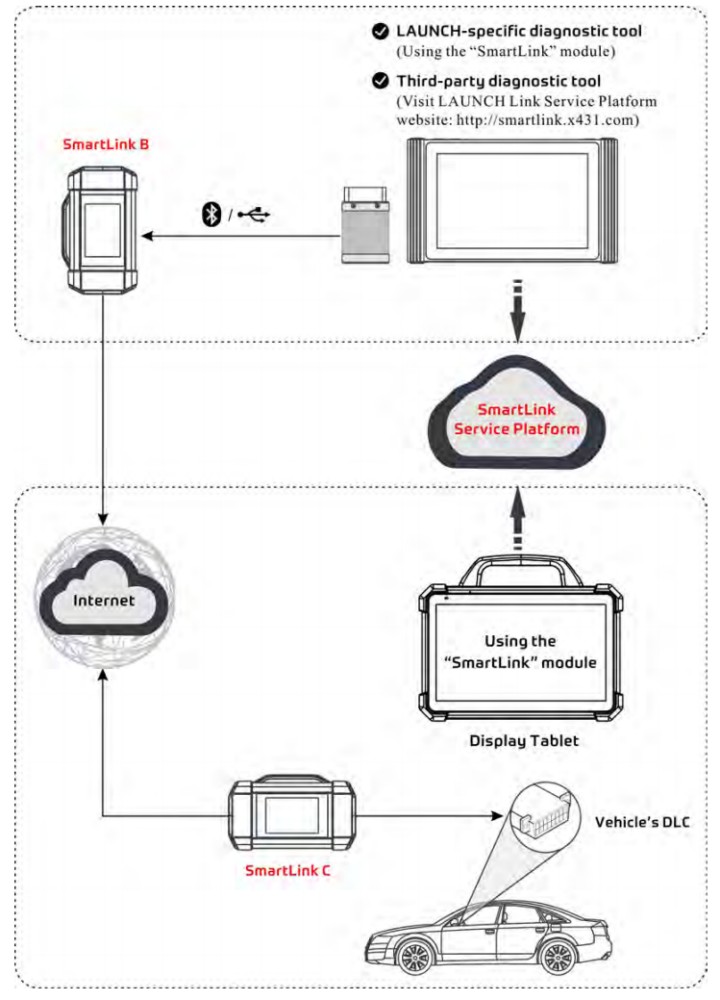

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.

It mainly consists of the following parts:

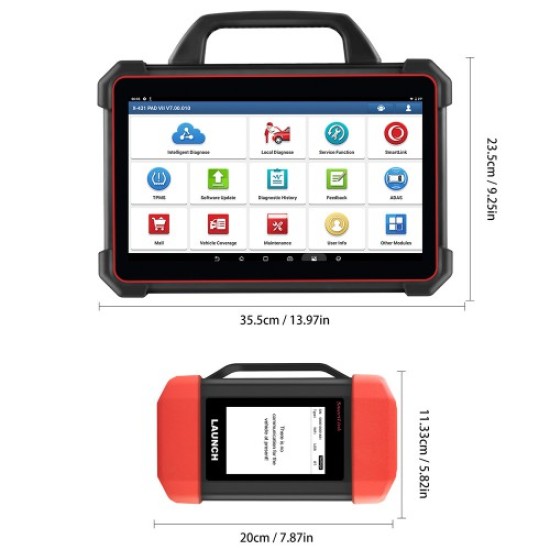

Launch X-431 PAD VII Elite Specification:

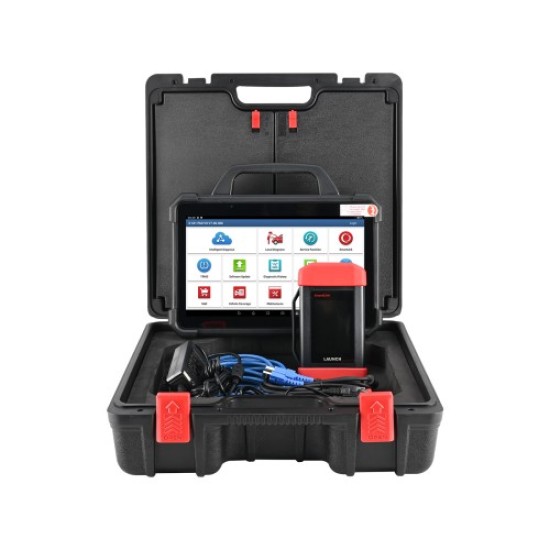

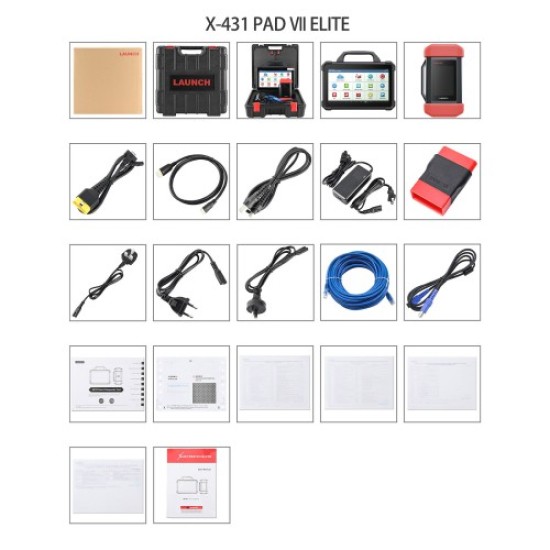

Package List:

1x X-431 PAD VII Elite Main Unit

1x Smartlink C diagnostic connector

1x Micro USB cable

1x Cigarette lighter cable

1x 5V DC out power adaptor

1x Battery clamps cable

1x OBD II extension cable

1x Non-16pin connector converting cabel

1x Password envelope

1x Non-16pin connectors set

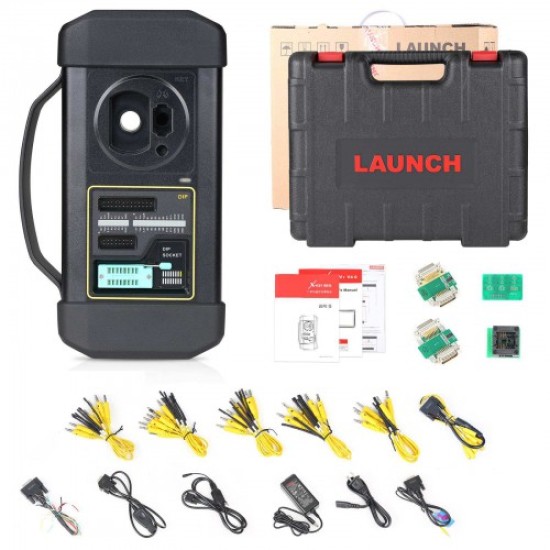

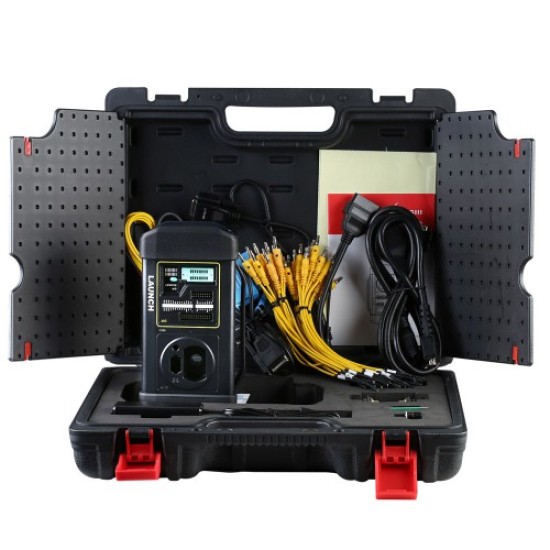

1set x Launch GIII X-Prog3
