Yanhua Mini ACDP Programming Master Basic Module with License A801 No Need Soldering Work on PC/Android/IOS with WiFi

Product Description

Yanhua Mini ACDP Programming Master Basic Configuration work on PC/Android/IOS with Wifi

Yanhua Mini ACDP Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP), and parts of Freescale / NEC MCU in circuit programming (ICP). This host is a necessary basic configuration for other modules.

Notice:

1. The first generation of acdp has been discontinued,please pay difference to change to ACDP-2 or buy the new generation ACDP-2 directly.

2. ACDP Module 3, 8, 12, 15, 18, 19, 25 and 30 Can't be used with ACDP-2.  Please select the corresponding version.

3. This is only Yanhua ACDP Master Basic Version, it is necessary for every modules, you can choose the module according to your need.

Highlights:

1. Test vehicle: No longer needs engines

2. Programming: No need soldering

3. Locksmith: No longer needs soldering work.

4. YANHUA: keys programming - No longer need soldering iron

5. The first in the world:BMW CAS4/FEM/BDC/16ODOWT Programming no need soldering

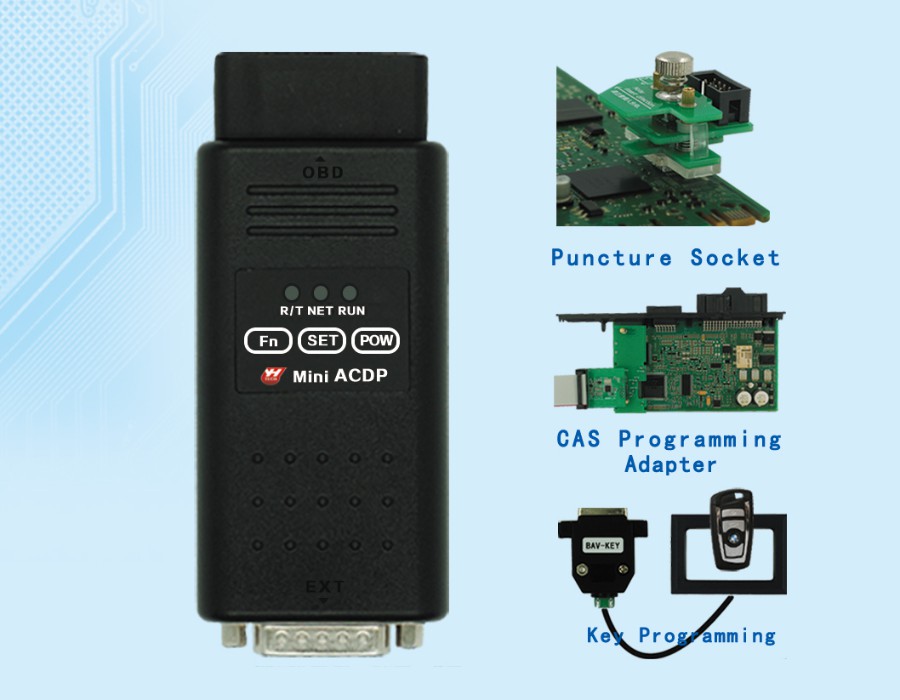

Yanhua Mini ACDP Master Description:

Solder-free programming & Data safety

WiFi connection & Free connection

1. Overturn the traditional work mode

Single operation is changed to team cooperation

2. Change of operation mode

PC operation is changed to mobile phone operation

3. Change of test connection mode

Electric soldering iron is changed to no-solder dedicated connector

4. Change from artificial observation to intelligent monitoring

Artificial observation / trying is changed to automatic detection algorithm, grap hical in dication the relability of connection. Ensure the data is not damayed and lost

5. Change of Service Mode:

Offline service is changed to online synchronous service

Support Multi-mode Connection:

Supporting PC/Apple IOS/Android Mobile Phone Operations Wifi Connection/ Router Connection/ Mobile Hot Spot Direct Connection

Operating System:

IOS: iPhone/iPad/MAC

IOS System Requirement:

1. System Version: 9.0 or above

2. Cell Phone Models: iPhone 6 or above

3. Running Memory Ram: >2G

4. Storange Space rom: >1.5G

Android: Xiaomi, OPPO,Samsung etc

Android System Requirement:

1. System Version: 5.0 or Above

2. Running Memory Ram: >2G

3. Storage Space Rom: >1.5G

How to install ACDP APP in Android Phone/Pad

PC Version: Windows XP, 7-10

System Version: 5.0 or above

Cell Phone Models: iPhone 6 or above

Running Memory Ram: >2G

SStorage Space Rom: >1.5G

Bluetooth and WIFI requirements and precautions

1. Bluetooth Version Requirements: 4.0 or more

2. WIFI: 2.4G (5G is not supported temporarily)

Precautions:

1. If you cannot find the ACDP with an Android phone when you are using the “Initial use settings”.

You can exit the APP and turn off the Bluetooth. When the “initialization settings” is restarted, the APP prompts to turn on the Bluetooth and turn it on again,

which will help to solve some Bluetooth connection problems for some Android phones .

2. If your WIFI route is difficult to be connected successfully, You can try to connect with another mobile phone as a WIFI hotspot.

How to Connect Yanhua Mini ACDP Device by Wifi/Bluetooth

Yanhua Mini ACDP WIFI/Bluetooth Connect Problem and Solution

Yanhua Mini ACDP Function:

EEPROM Programming:

Support 93/24/25/35/95 Series EEPROM in circuit programming (ICP) and on adapter board programming(OBP).

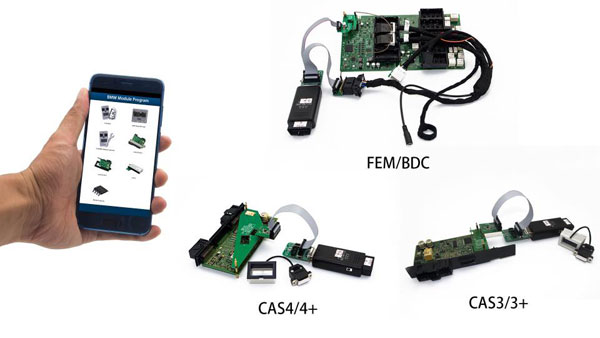

BMW module Programming:

① Support CAS1-CAS3+ IMMO key programming and mileage reset through OBD mode.

② Support CAS3+/3++, CAS4/4+key programming and mileage reset by ICP.

Data reading and writing without lifting the pin. No removing any components. Intelligent detection.

③ Support FEM/BDC IMMO key programming and mileage reset.Fully automatic mode matching.Safe,reliable and fast!Support FEM/BDC module restore, FEM/BDC backup and write anti-theft data at the same time.

④ Support key unlocking, key refresh function.

⑤ Repair (FRM) Footwell module data without coding.

⑥ Support BMW 8HP (F/G chassis) gearbox refresh. 6HP (F chassis) gearbox refresh and cloning.

⑦ Support CAS1-CAS4 data restore. It can modify vehicle frequency, VIN, ISN code, or replace CAS module by modifying EE data.

⑧ Support OBD restore CAS3/CAS3+/CAS3+ problem caused by downgrade

⑨ Read ISN codes of N20/N55/N13 by OBD or without openning the DME shell. Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell. Read ISN code of other models (B38, etc.) by opening the shell.

⑩ Support instrument calibration of BMW full range.

Jaguar/Land Rover KVM module Programming:

Support Adding key and all-key-lost for new Jaguar and land rover with KVM module after year 2015.

Porsche BCM module Programming:

Support Adding key and all-key-lost for new Porsche after year 2010

Volkswagen MQB module Programming:

Support parts of VDO key programming/mileage adjustment of VW MQB platform via OBD, and Passat MMC(NEC D70F3525+95320)instrument adjustment after years 2015 by ICP mode.

Fujitsu CPU module Programming:

Support Fujitsu CPU MB91F(Honda Fit,KIA K3/K5,Sonata 9,etc.)Mileage adjustment.

Function of Airbag ECU reset/maintenance reset is under development...

Mercedes-Benz, Audi and various models is under development...

The comparison between ACDP and other devices for reading/writing data of 8-pin chip

The other devices to use traditional way---soldering to read/write data of 8-pin chip

Need to desolder the 8-pin chip from cluster or airbag, then solder to the corresponding adapter, lastly connect device to read and write data.

Disadvantages:

1. Double soldering of the FEM/BDC core-chip 95128/95256 may cause the module damage

2. Manual soldering is risky and unreliable. Any faulty solder may cause the data lost/

BMW: CAS4/FEM/BDC/16ODOWT

Solder-free programming Data safety

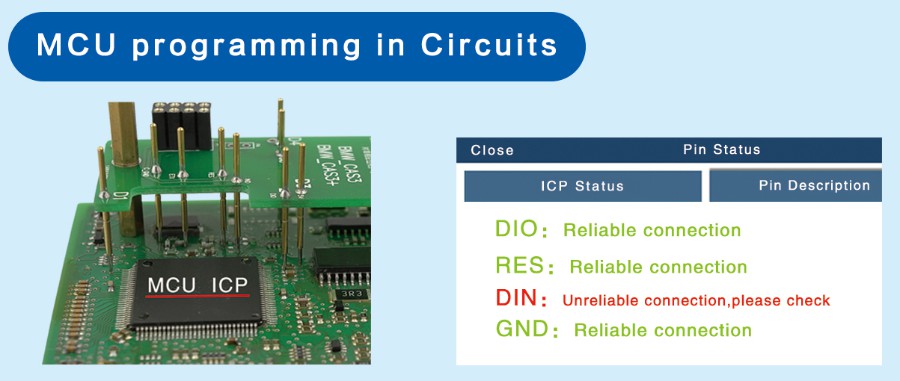

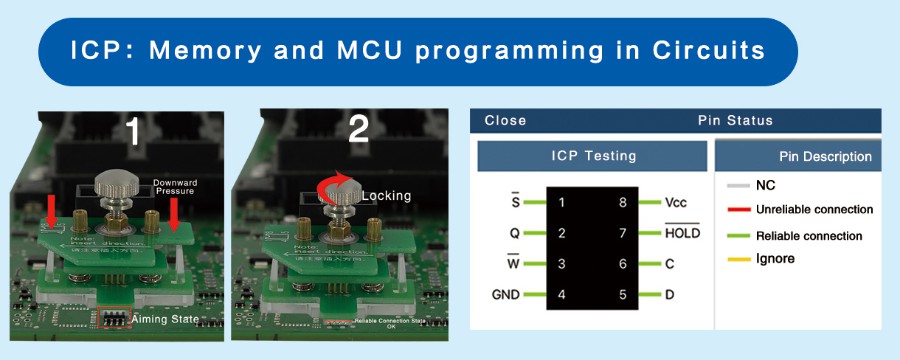

ICP: Memory and MCU programming In Circuits

Memory and MCU programming In Circuits

Yanhua Mini ACDP FAQs:

Q1: How can I use the 6HP data refresh function to install used transmission in another car? Do I need to read the data from the original transmission and write to the replacement one? Or just refresh data in the replacement transmission and I will be able to program it with proper tools ?

A1: Please follow below two video guide on our Youtube official channel

How to Use Yanhua ACDP to Reset BMW ISN 8HP EGS

https://www.youtube.com/watch?v=Lv7n7lhvyw4

How to Use Yanhua Mini ACDP Refresh BMW 6HP EGS

https://www.youtube.com/watch?v=2xX2ZECAkRo

Q2: Does Yanhua Mini ACDP support BMW X3 f25 2011 160DOWT CAS 4 5mh48?

A2: Yes,you need SK247 Main Unit+SK247-1+SK247-4

Q3: Can ACDP read,wite & clear orginal 35160?

A3: ACDP only can read 35160,and for write function,you need YH35XX programmer+Simulator

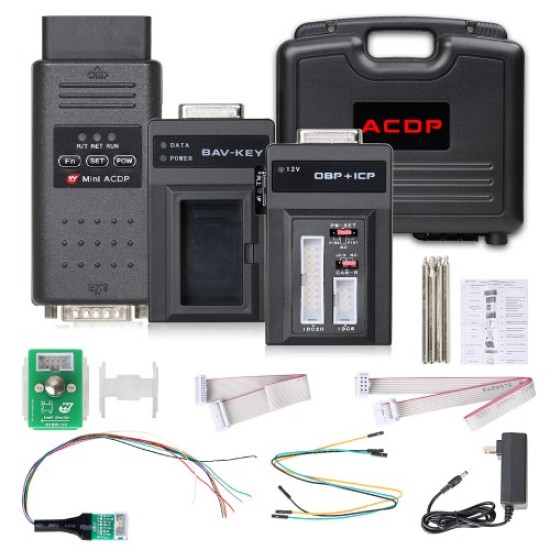

Yanhua Mini ACDP Package List:

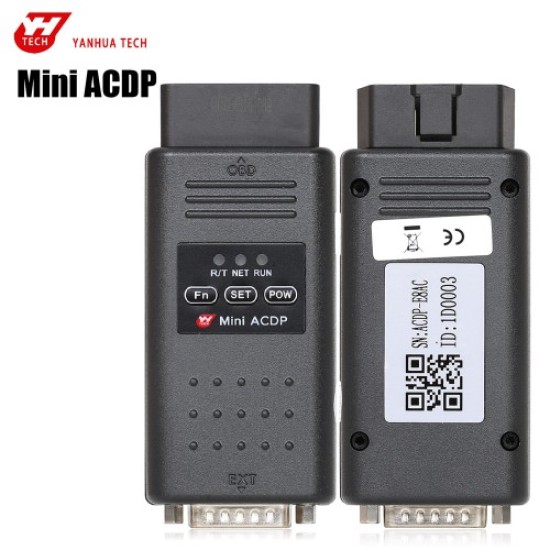

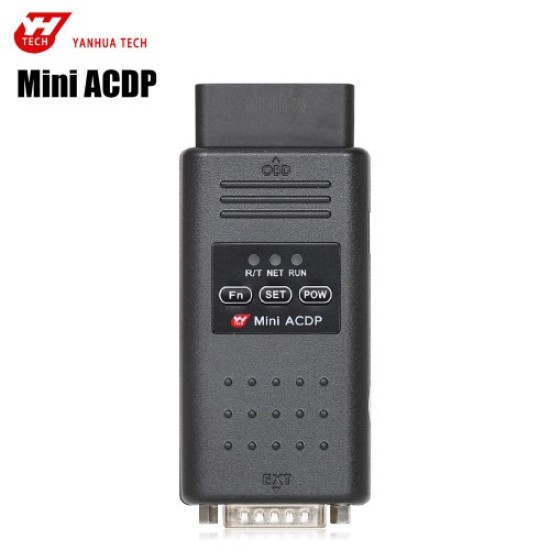

1pc x ACDP Programmer Master

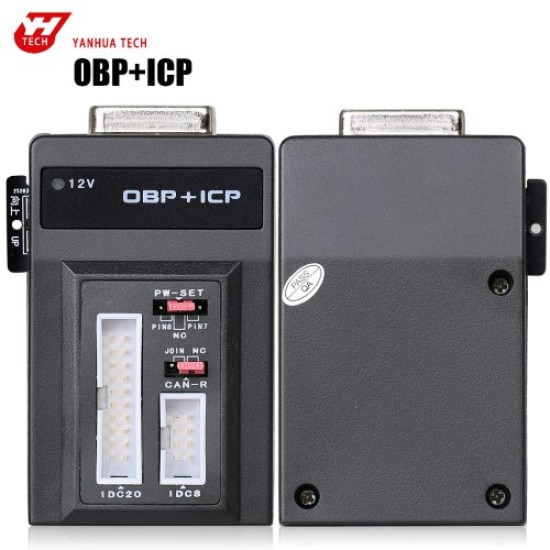

1pc x OBP+ICP adapter

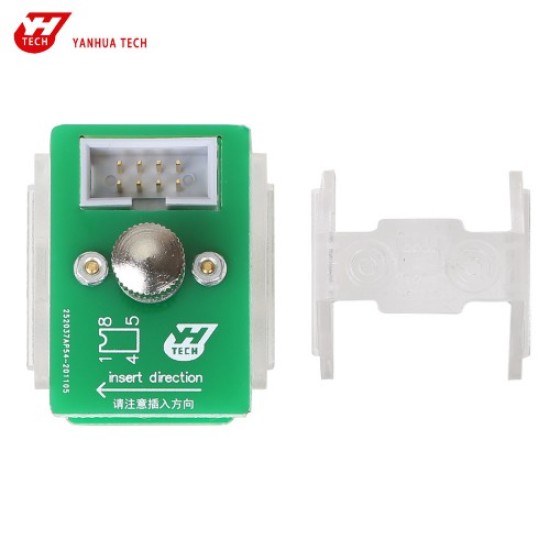

1pc x Puncture socket

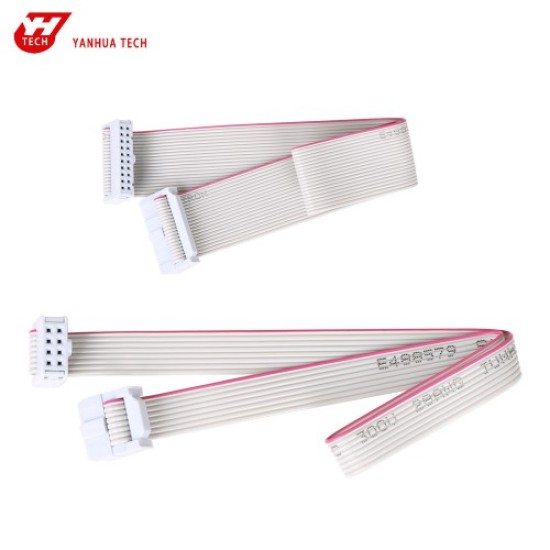

1pc x P8P ribbon cable

1pc x 8P cable

1pc x 20P cable

1pc x 12V power adapter

3pcs x paint surface cleaning needles (1.0mm,0.8mm,0.5mm)

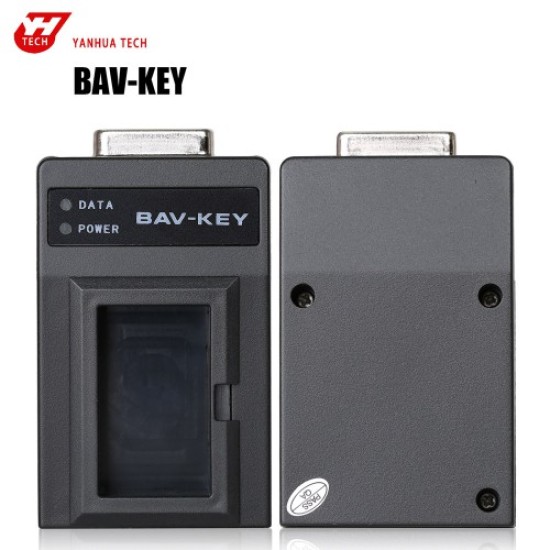

1pc x BAV Key Adapter
