2022 Original Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool with XP400 Pro Upgraded Version of IM608

Product Description

Original Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool

Highlights:

1. Upgraded Version of Autel IM608

2. One Year Free Update Online on Autel Official Website

3. Comes with XP400 Pro which adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading

4. Could be used with IMKPA Accessories (Need to Buy Separately) Which adds BMW EWS3 key learning, Benz NEC key learning and Benz ESL_W209 read/write/erase

5. Existing Autel IM508/ IM608 Users Can Upgrade To IM608 Pro by Purchasing Autel XP400 Pro

6. Multi-Language for both Diagnosis and IMMO Menu:

English, French, German, Spanish, Portuguese, Italian, Dutch, Polish, Swedish, Korean, Japanese, Russian and Traditional Chinese

7. Ship from US/EU/UK Warehouse, Fast Delivery & No Tax

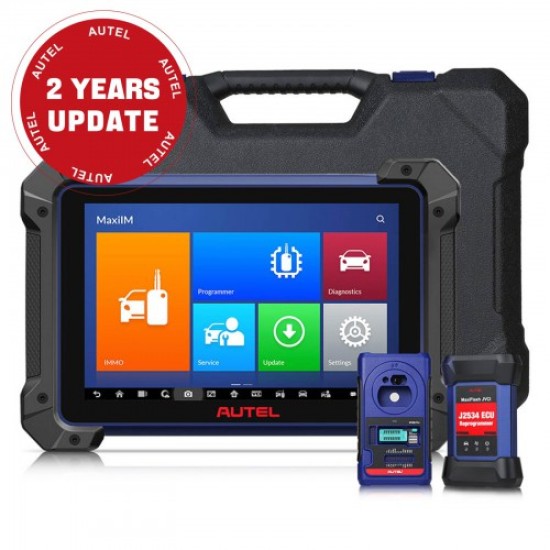

8. Big Promotion: Get 2 Years Free Update Online. After 2 Years, please check Autel MaxiIM IM608/IM608Pro One Year Update Service

Warm Notice:

Do Not Connect XP400Pro to Vehicles or Power Supply Directly, Otherwise Both XP400Pro and IM608 Pro Will Be Damaged.

Description:

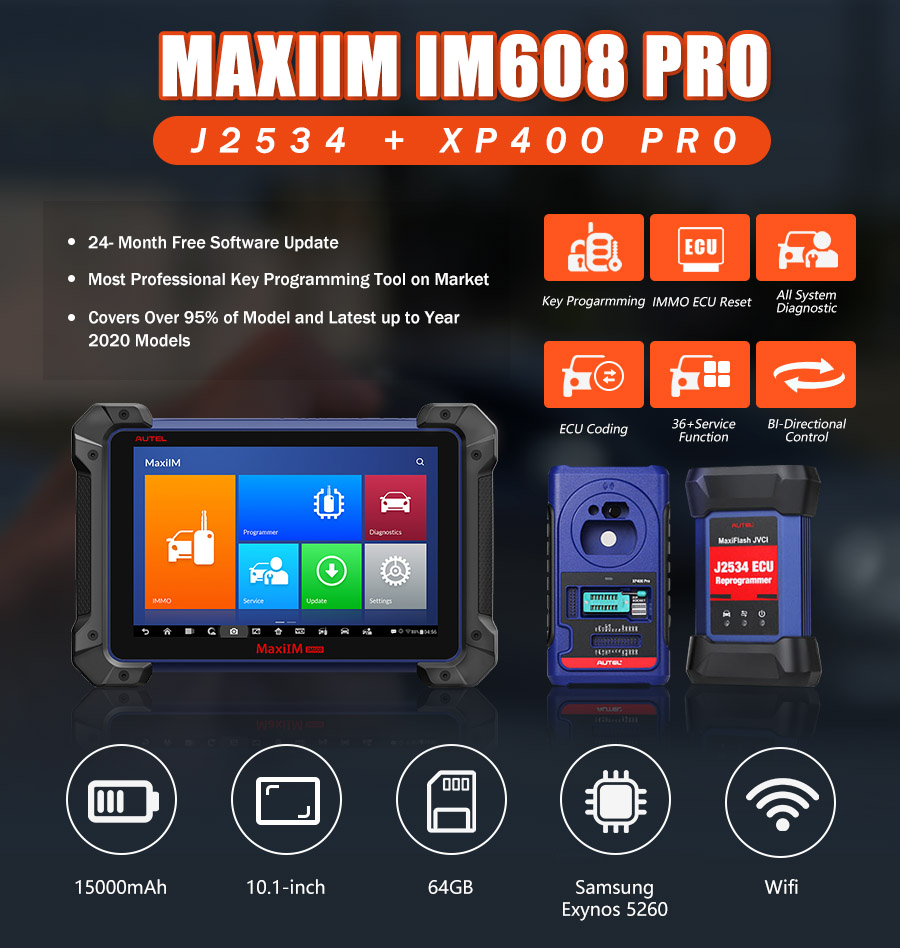

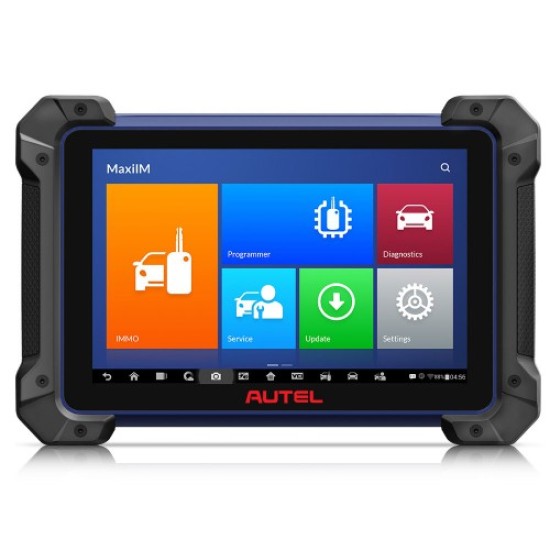

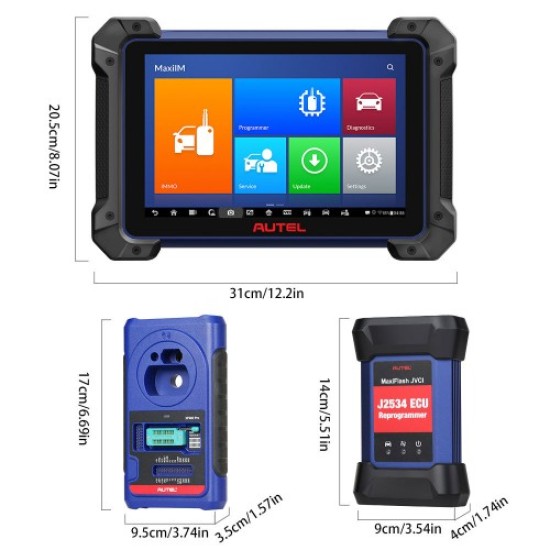

Autel MaxiIM IM608PRO is a comprehensive key and immobilizer programming package of the MaxiIM IM608 Pro 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit (optional). The IM608 Pro enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle. Autel IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active test, coding and adaptations.

What's the new added function of Autel IM608 Pro?

Autel MaxiIM IM608 Pro comes with XP400 Pro:

Expanded EEPROM functions for more component access

170+ types Odometer component reading funcitons

180+ Immobilizer ECU component types

40+ Engine ECU component types

2000+ MCU component types

440+ EEPROM component types

Includes 1-Year Warranty / Free Software Update for Life of Tool

Key Programmer Adapter Kit (Optional):

Supports over 10 key unlock types

BMW EWS3 key learning

Benz NEC key learning

Benz ESL_W209 read/write/erase

Autel MaxiIM IM608 Pro Detail Functions Supported:

1. IMMO Functions

Auto Detect Make/Model/Year/System

Read PIN (All Key Lost)

Key Learning

IMMO ECU Reset/Adaption

IMMO ECU Refresh/Coding

Remote Learning

AUDI Q5/A4/A5 2015-2017 Key Learning

VW MQB Key Learning

BMW FEM/BDC Key Learning and Adaption

BMW CAS4 Key Learning and Adaption

Mercedes Key Learning

2015-2018 Land Rover & Jaguar write key via dump

Volvo Smart Key Learning/knob-style smart key

Advanced Programming Functions

EEPROM Read/Write

MCU Read/Write

Key Programming

Mercedes Key Read/Write

Remote Frequency Detect

OE-Level Diagnostics

2. All system diagnostics and Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

Oil Service Reset

Parking Brake Pad Relearn After Replacement

Steering Angle Sensor Relearn

Battery Registration and Reset

Diesel Particulate Filter Regeneration

Tire Pressure Monitoring System

Active Test

ECU Coding

VW/Audi Component Protection

Complete Service Functions

XP400Pro adds support for following chips:

EEPROM-->>AMD-->>AM29FXXX series chip

EEPROM-->> FUJITSU-->> MB29FXXX series chip

EEPROM-->> ST-->> M29FXXX series chip

Engine control module-->> ST-->> M29FXXX series chip

IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function

IMMO-->> BMW-->>EWS3 module read/write function

REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

XP400 Pro adds support for following adaptor board:

APB113 PCF79XXadaptor board

APB114 EWS3 adaptor board

APB115 NEC Adapter board

APB118 NEC ELV adaptor board

APB119 TB28FXXXadaptor board

APB120 TMS370adaptor board

APB121 AM29FXXX Adapter board

APB122 AM29FXXX adaptor board1

APB123 AM29FXXX adaptor board2

APB126 M35080/D80 adaptor board

APB127 MC68HC0(7)05BXX adaptor board

APB128 MC68HC05X32 adaptor board

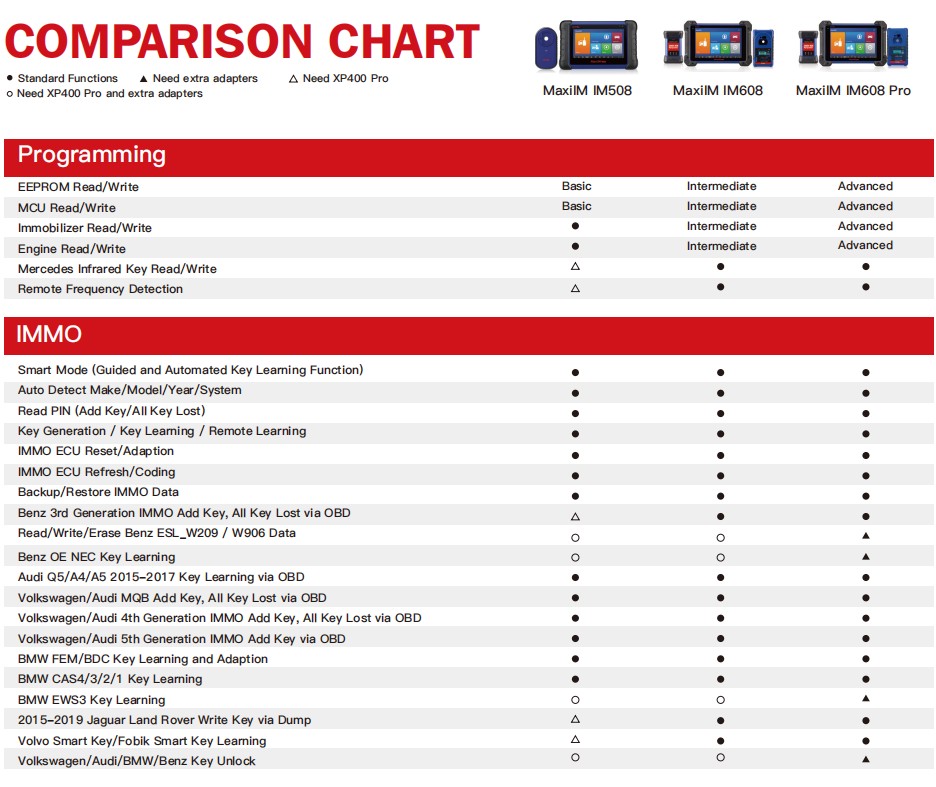

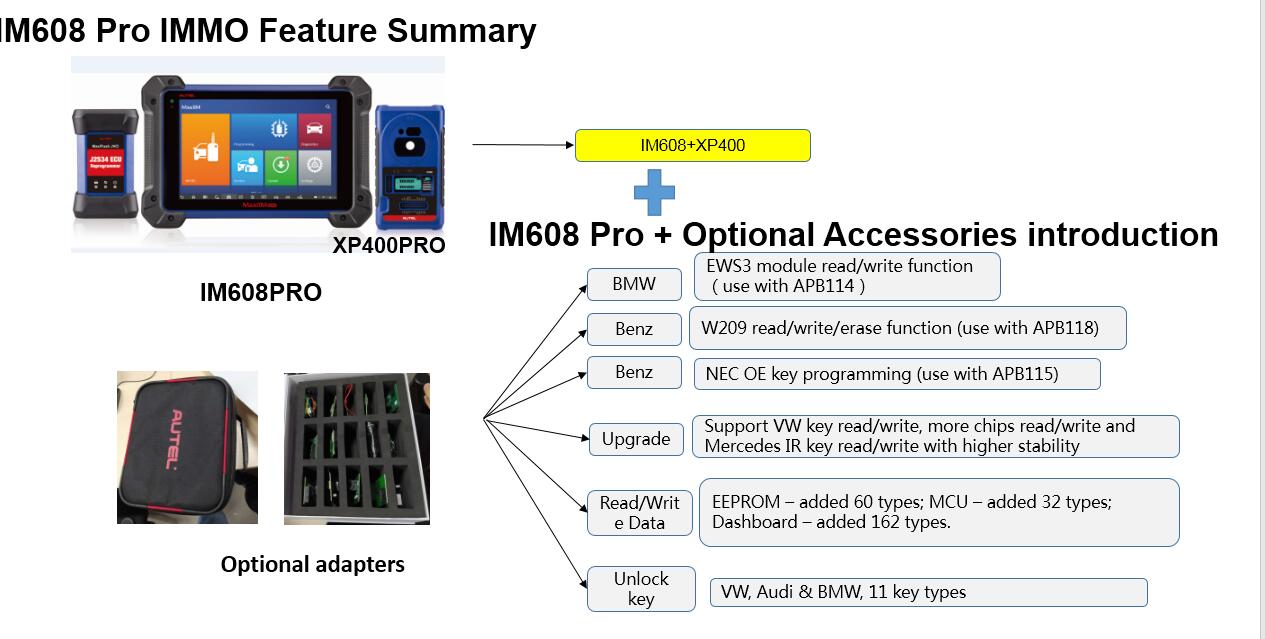

What's the Difference Between IM608 and IM608 Pro?

The only difference between IM608 and IM608 Pro is the programmer that comes with the tablet.

The tablets themselves IM608 and IM608Pro have no difference in terms of hardware and software. All keep the same.

As for the difference of XP400 and XP400Pro, the main difference is the hardware upgrade. XP400PRO is more powerful.

But the good thing is you can buy XP400Pro and optional adaptors together with any Autel key programming tool like IM508 and IM608 to have the same features with IM608Pro&XP400Pro and optional adaptors.

XP400Pro programmer upgrade and improvement compare to XP400:

1. Fixed the problem of connecting the XP400 to the vehicle ODB connector causing the burnout of the device.

2. Fixed the stability problem of using APB102 IR key to read/write.

3. Upgrade the hardware of programmer, Chip read/write function is more stable and support more EEPROM chips.

4. Fixed the problem of EERPOM adaptor APB101 can’t read/write EEPROM chip and rename it as APA129.

5. Rename accessories APA104、APA105、APA106 as APA107、APA108、APA109.

6. APA108 and APA109 cable length is shorter than before, reducing the signal interference.

7. XP400 Pro add support for following chips:

(1) EEPROM-->>AMD-->>AM29FXXX series chip;

(2) EEPROM-->> FUJITSU-->> MB29FXXXseries chip;

(3) EEPROM-->> ST-->> M29FXXXseries chip;

(4) Engine control module-->> ST-->> M29FXXXseries chip;

(5) IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read/write/erase function;

(6) IMMO-->> BMW-->>EWS3 module read/write function;

(7) REMOTE_RENEW(renew key)-->> NEC-->> V51 and V57 chip read/write/erase; (Support original dealer key learning with key dump mode.)

XP400 Pro adds support for following adaptor board:

(1) APB113 PCF79XXadaptor

(2) APB114 EWS3 adaptor

(3) APB115 NEC Adapter

(4) APB118 NEC ELV adaptor

(5) APB119 TB28FXXXadaptor

(6) APB120 TMS370adaptor

(7) APB121 AM29FXXX Adaptor

(8) APB122 AM29FXXX adaptor

(9) APB123 AM29FXXX adaptor

(10) APB126 M35080/D80 adaptor board

(11) APB127 MC68HC0(7)05BXX adaptor

(12) APB128 MC68HC05X32 adaptor

400pro supports 12 types of unlocking smart key:

BMW E Chasis remote control

OE 315 remote refresh

OE 868 remote refresh

Aftermarket remote control refresh

BMW F Chasis remote control

315 remote refresh

433 remote refresh

868 remote refresh

Audi--semi smart key

PCB2_8T0959754_433_REMOTE

PCB2_8T0959754D_868_REMOTE

Audi--smart key

PCB3_4H0959754DA_433_SMARTKEY

PCB3_4H0959754DB_315_SMARTKEY

PCB3_4H0959754DD_868_SMART

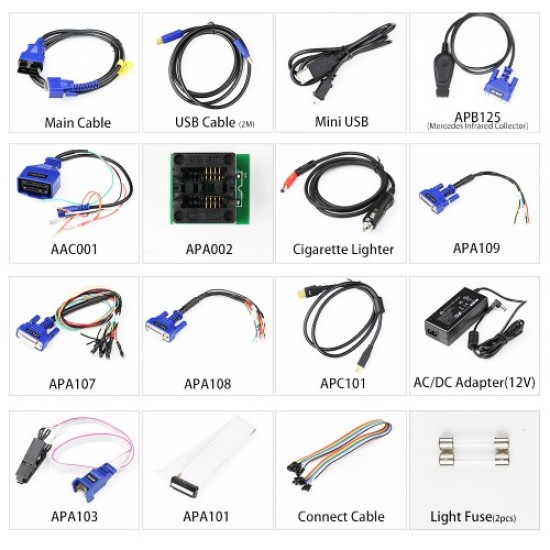

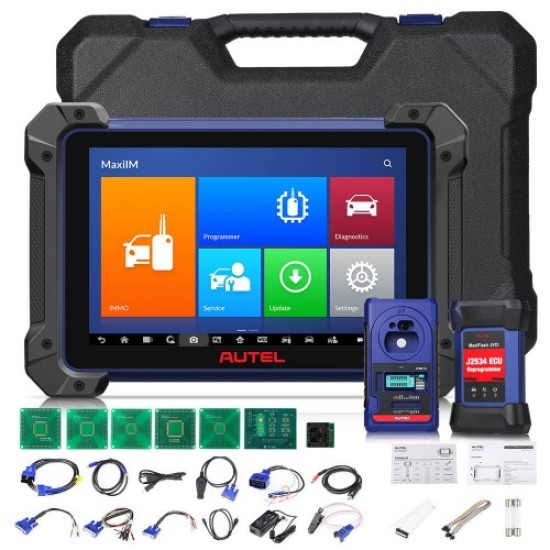

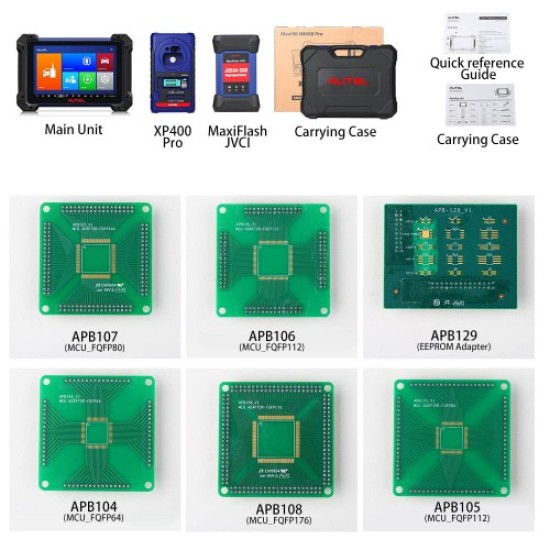

Package List:

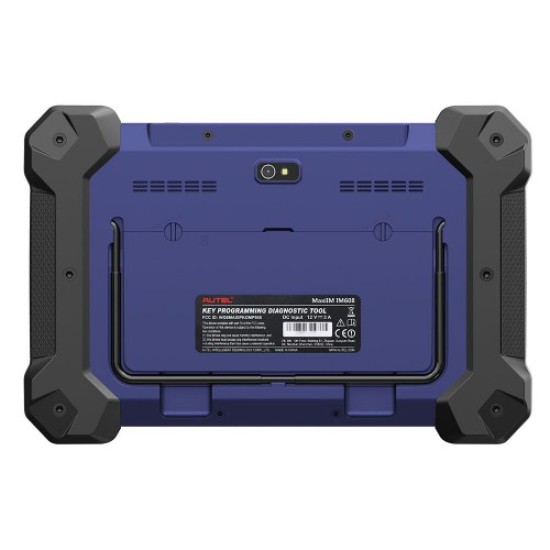

1pc x MaxiIM IM608 Tablet

1pc x XP400 Pro Key Programmer

1pc x MaxiFlash JVCI ECU Reprogrammer

1pc x Carry Case

1pc x Main Cable

1pc x USB Cable (2m)

1pc x Mini USB Cable

1pc x AC/DC Adapter (12V)

1pc x Light Fuse - 6*30mm (2pcs)

1pc x Cigarette Lighter

1pc x AAC001

1pc x APC101 (USB Cable)

1pc x APB129 (EEPROM Adapter)

1pc x APB125 (Mercedes Infrared Collector)

1pc x APB103 (MCU_PLCC52)

1pc x APB104 (MCU_FQFP64)

1pc x APB105 (MCU_FQFP80)

1pc x APB106 (MCU_FQFP112)

1pc x APB107 (MCU_FQFP144)

1pc x APB108 (MCU_FQFP176)

1pc x APB109

1pc x APB110 (MCU_FQFP176)

1pc x APB111 (MCU_FQFP176)

1pc x APA002 (EEPROM Socket)

1pc x APA101 (Signal Cable)

1pc x APA103 (EEPROM Clamp)

1pc x APA107 (ECU Clamp)

1pc x APA108 (MCU Clamp)

1pc x APA109 (MC9S12 Clamp)

1pc x Connect Cable
